Shift Products Billet Light Bracket

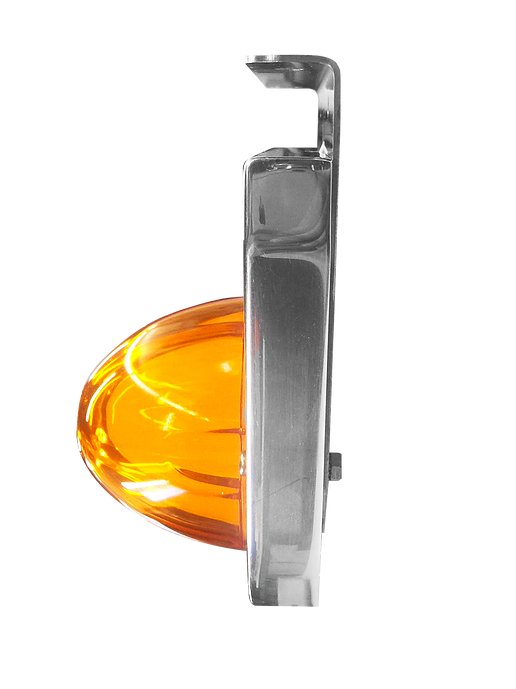

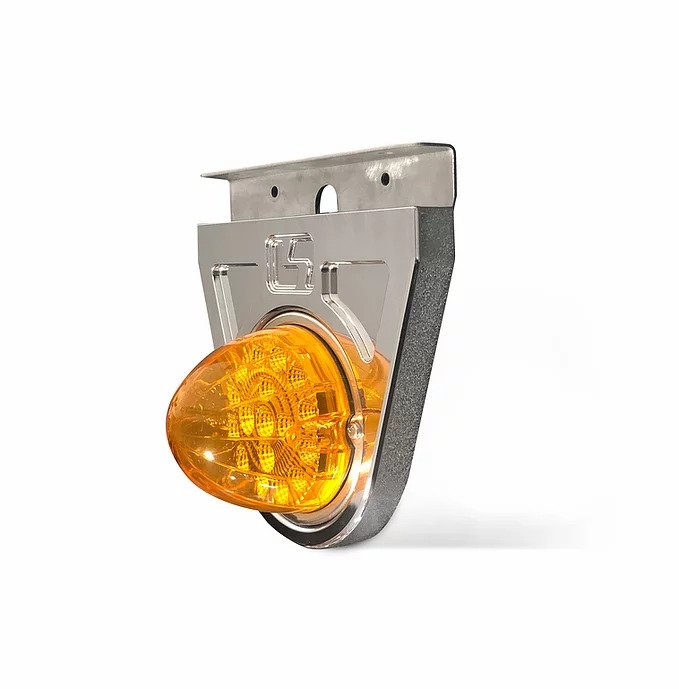

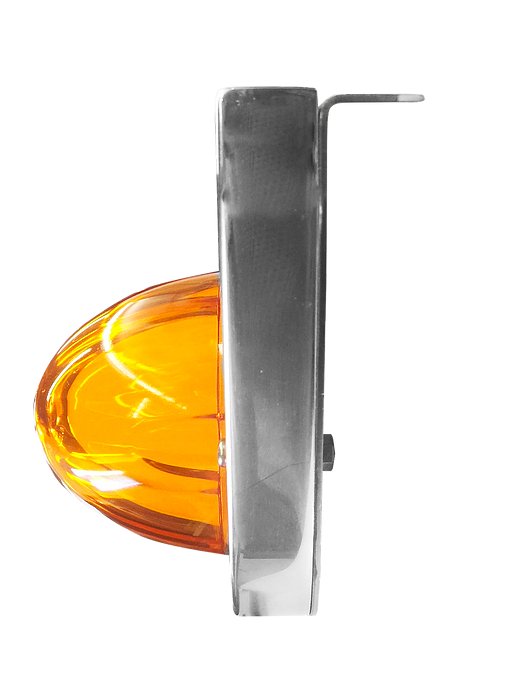

Made with chrome plated billet aluminum with 304 grade stainless steel mounting. The Billet Light Bracket features both a flush mount and frame mount option.



Frame Install:

  1. Position mounting bracket so that top flange is over the main aluminum bracket and adjust to desired height.
  2. Feed wiring through center slot and reattach mounting bracket to aluminum bracket using the light mounting bolts.
  3. Position on frame rail and tighten to frame using mounting bolts on top flange.



Flush Install:

  1. Position mounting bracket so that top flange faces away from main alumnium bracket and adjust to desired height.
  2. Feed wiring through center slot and reattach mounting bracket to aluminum bracket using light mounting bolts.
  • Warning:

    Clear lens for accessory or off-road use only. Clear lens my not be legal for street use. Please check your local City, State, and/or Federal ordinances regarding installation and use of this product.
